0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 12832 Inch 12832 OLED 128*32

Nazwa marki:	Genyu
MOQ:	100 sztuk
Cena £:	$1.19/pieces 100-999 pieces

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Guangdong, Chiny

Typ:

PMOLED

Rozmiar wyświetlania:

0,91 OLED

Tryb dysplya:

OLED

Rozmiar:

Wyświetlacz OLED 0,91 cala

Matryca punktowa:

OLED 128x32

Szeroki kąt widzenia:

160 °

Napęd IC:

SSD1306 OLED

Rozmiar modułu:

30,00*11,50*3,70 mm

Obszar aktywny:

22.384*5,584 mm

Kolor:

Biały lub niebieski

Nazwa produktu:

15 pin 0,91 "OLED

Interfejs:

SPI lub I2C

Podkreślić:

0.91 Inch OLED Panel

I2C OLED Screen

0.91 Inch OLED Display

Opis produktu

15 Pin 0.91" OLED 128x32 White Blue OLED Panel 0.91 Inch 128*32 SSD1306 SPI I2C Screen Display 0.91 OLED Display

Product Description

Products: Organic light emitting diode (OLED)

Regular size, standing stock.

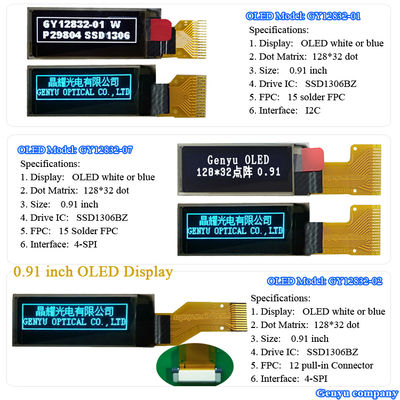

Product number : GY12832-03 white Words

Product number : GY12832-07 Blue Words

1. Features

(1) Display Type : Organic light emitting diode (OLED)

(2) Display Size : 0.91 inch oled

(3) Dot Matrix : 128x32 Dots
(4) Drive IC : SSD1306

(5) Viewing Angle : 160°

(6) Color : White or Blue

(8) Operating Tempeture : -20~70 °C

(9) Storage Tempeture : -30~80 °C

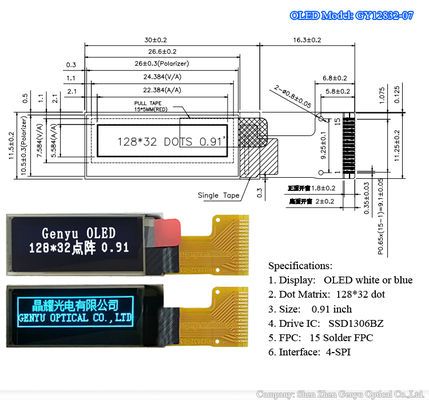

Structure	LCD + IC + FPC
Module Size	30.0011.503.70 mm
VIEwing Area	24.384*7.584 mm
Dot Size	0.159*0.159 mm
Dot Pitch	0.175*0.175 mm
Connection	COG + FPC

Life Time (120 cd/m 2 ) 10000 - hour
Life Time (80 cd/m 2 ) 30000 - hour
Life Time (60 cd/m 2 ) 50000 - hour

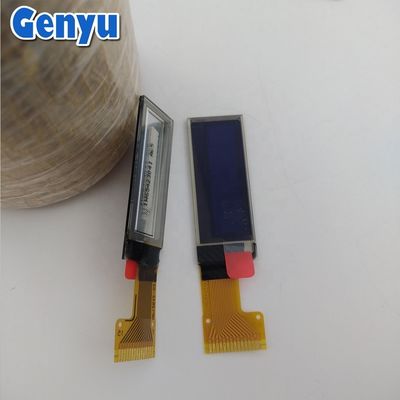

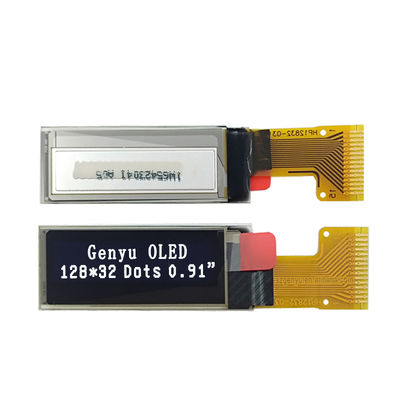

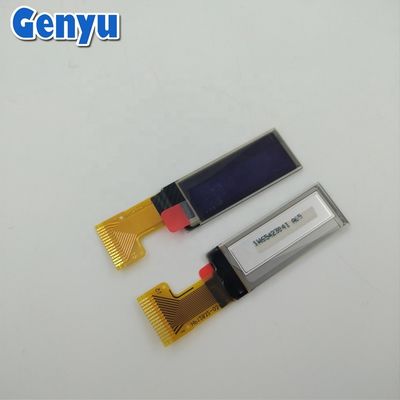

Detailed Images

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 0

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 1

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 2

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 3

Packaging & Shipping

Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....

Delivery
Items will be shipped within 3 working days on payment received.

By DHL/UPS/FedEx/TNT: about 4-9 working days.
By EMS: about 10-14 working days.
By CPAM/HKPAM: about 15-25 working days.

Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 4

Company Information

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 5

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 6

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 7

Our Services

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 8

1). Datasheets

We will provide detailed datasheets of screen/module/driver IC and application circuit to you.

2). Source Code
We can provide whole source code or initial code to you.

3). Technical Support
We have experienced engineers and they will provide you comprehensive technical service.

4). Customizable
We provide customizable service. For example custom FPC, custom PCB, custom module and so on.

5). Solution
If you need a solution with some special function, tell us,we can meet your requirement.

WHAT CAN WE OFFER?

a) Small orders will be acceptable.
b) High quality, durable-competitive pricing.
c) Mass production leadtime would be guaranteed.
d) Free technical services will be provided.
e) Each order will have enough spares.

Pls feel free to contact us,my friend!
