2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances

Nazwa marki:	Genyu
MOQ:	1000
Cena £:	$2.05-2.19

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Guangdong, Chiny

Rozmiar wyświetlacza:

2,4 cala

Rezolucja:

240*320 punktów

Tryb wyświetlania:

Transimisyjny, TN/IPS

Kierowca Ic:

ST7789/NV3030/IIL9341 itp.

Kąt widzenia:

12.06 lub bezpłatnie

Podświetlenie:

4 chipy Biała dioda LED

Interfejs:

SPI, MCU, RGB itp.

Złącze FPC:

Wtyczka lub lutowanie

Temperatura pracy:

-20 ~ + 70 ℃

Rozmiar modułu:

42,72*60,26*2,35 mm

Obszar aktywny panelu:

36,72*48,96 mm

Jasność:

300 cd/m2

Współczynnik kontrastu:

250

Kontrola IC:

ST7789V

Typ FPC:

Typ spawania 18-pinowy

Podkreślić:

2.4 inch TFT LCD Display

240x320 Resolution TFT LCD Panel

SPI Interface TFT LCD Screen

Opis produktu

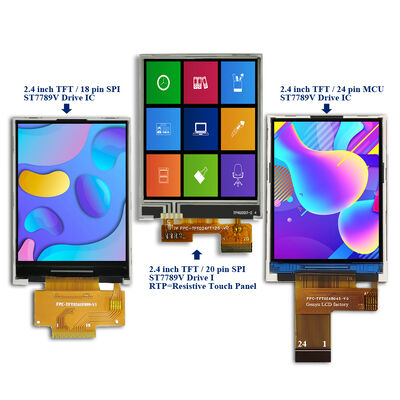

2.4 Inch TFT LCD Display Modules

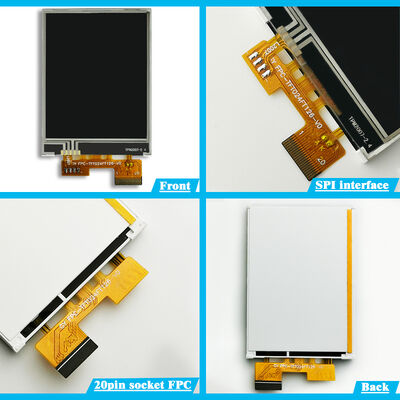

GY-TFT024FT126 - Resistive Touch Screen 2.4 inch TFT

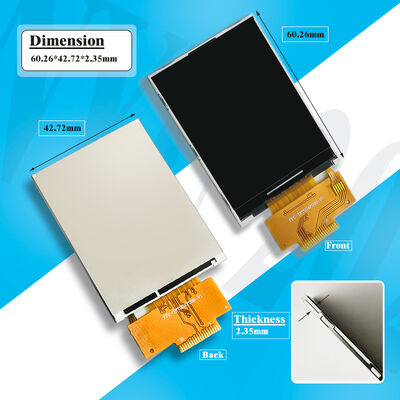

Module Size: 42.72×60.26×2.35mm
Panel Active Area: 36.72×48.96mm
12:00 viewing angle panel
ST7789V Control IC
Resolution: 240×320
4 SPI Interface
Luminance: 300 cd/m²
Contrast Ratio: 250
4 white LEDs backlight
Operating Temperature: -20°C to +70°C
20 pin Pull-in type connector FPC

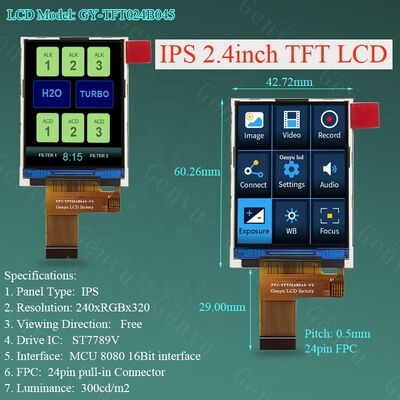

GY-TFT024B045 - IPS TFT LCD Display

Module Size: 42.72×60.26×2.20mm
Panel Active Area: 36.72×48.96mm
IPS full viewing angle panel
ST7789V Control IC
Resolution: 240×320
MCU 8080 16bit Interface
Luminance: 300 cd/m²
Contrast Ratio: 250
4 white LEDs backlight
Operating Temperature: -20°C to +70°C
24 pin Pull-in type connector FPC

GY-TFT024F099 - SPI Interface TFT LCD Display

Module Size: 42.72×60.26×2.35mm
Panel Active Area: 36.72×48.96mm
12:00 viewing angle panel
ST7789V Control IC
Resolution: 240×320
SPI Interface
Luminance: 300 cd/m²
Contrast Ratio: 250
4 white LEDs backlight
Operating Temperature: -20°C to +70°C
18 pin welding Type FPC

Complete TFT LCD Display Size Range

TFT LCD Size	View Angle Options	Interface Options	FPC Options
0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7.0"	IPS Full view angle, 12:00, 6:00	RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customization	Pull-in Connector, Solder Type, Support customization

Click on the pictures below to explore our complete TFT display portfolio:

About Shen Zhen Genyu Optical Co., Ltd.

Genyu offers tens of thousands of LCD options for your reference. Please share your requirements with Erica Tan, who will recommend similar LCDs according to your specifications, or we can customize LCDs to meet your exact requirements.

For more datasheets and samples, please click here.

Additional Display Technologies

PMOLED Display

Genyu offers mini size OLED displays in sizes: 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.3", 1.54", 2.08", 2.3", 2.4" with SSD1315 and SSD1306 drive ICs supporting I2C and SPI interfaces.

Custom Segment LCD Display

Genyu has produced tens of thousands of segment LCDs including TN, STN, HTN, FSTN, and VA/BTN black LCD displays. We can recommend similar LCDs or design custom LCDs according to your requirements.

128x64 Dot Matrix Graphic LCD Display

Genyu offers various dot matrix LCD displays including: 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128, 160x160, and up to 320x240 resolutions.

TFT LCD Module Portfolio

Genyu provides HD full color TFT LCD displays in sizes: 0.91", 1.0", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7", and 10.1" with standard sizes, standing stock, and samples available.

Wide Range of Applications:

Wearable Devices
Medical Equipment
Financial Systems
Industrial Controls
New Energy Systems
Communication Devices
Instrumentation

Manufacturing Capabilities

We can design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customers' requirements. Our current annual production capacity has reached 100 million LCD screens, 30 million LCMs, and 40 million B/L units.

Quality Manufacturing Environment

Nearly 6000 square meters of dust-free workshop with a cleanliness level of 100k. The entrance and exit of workshop materials are equipped with totally closed transfer windows, and the entrance is equipped with air shower systems that effectively and rapidly remove dust, hair, and other contaminants from clothing, reducing pollution problems caused by personnel entering and leaving the workshop.
