3.2 inch TFT LCD Display Module with 240x320 Resolution and Parallel MCU 16Bit Interface for Household Appliances

Nazwa marki:	Genyu
MOQ:	10
Cena £:	CN¥19.57-27.39

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Guangdong, Chiny

Rozmiar wyświetlacza:

3,2 cala

Tryb wyświetlania:

240*320

Napęd IC:

ILI9341V

Interfejs:

Równoległy MCU 16-bitowy

Kąt widzenia:

12:00

Podświetlenie:

Biała dioda LED

Zasilanie:

3.3 v

Rozmiar modułu:

55,04 x 77,7 x 2,4 mm

Obszar aktywny:

48,6*64,8 mm

Jasność:

260 cd/m2

Rezolucja:

240RGB x 320 pikseli

Temperatura pracy:

-10~60°C

Typ wyświetlacza:

TFT

Struktura:

LCD + układ scalony + FPC + BL

Kierunek oglądania:

12:00

Podkreślić:

3.2 inch TFT LCD Display

240x320 resolution TFT LCD Module

Parallel MCU 16Bit interface LCD Panel

Opis produktu

3.2 Inch 240x320 TFT LCD Display Module

Compact 3.2 inch TFT LCD module with 240x320 resolution, designed specifically for household appliance applications.

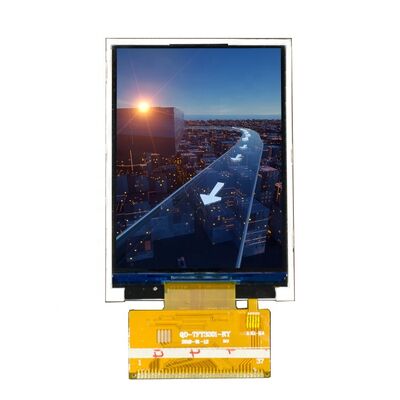

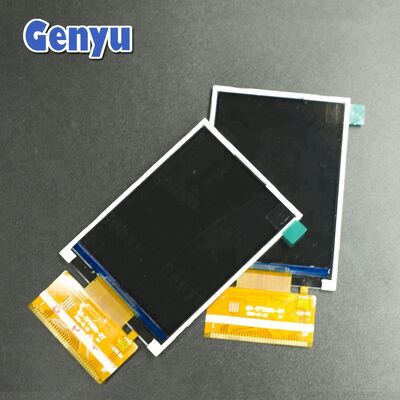

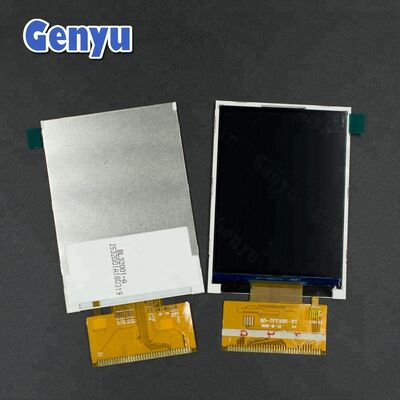

Product Images

Technical Specifications

Display Type	240RGB × 320 Dots TFT LCD
Screen Size	3.2 inch
Interface	Parallel MCU 16Bit / 8Bit
Controller IC	ILI9341V
Luminance	260 cd/m²
Power Supply	2.8V
Resolution	240RGB × 320 pixels

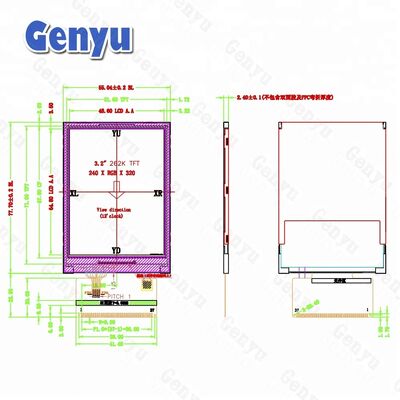

Module Size	55.04 × 77.7 × 2.4 mm
Viewing Area	48.6 × 64.8 mm
Viewing Direction	12 o'clock
Operating Temperature	-10°C to 60°C

Pin Definition

Pin No.	Pin Name	Pin No.	Pin Name
1	GND	25	GND
2	VCC(2.8V)	26	YD
3	IOVCC	27	XR
4	CS	28	YU
5	RS	29	XL
6	WR	30-34	LEDK1-LEDK5
7	RD	35	NC
8	RESET	36	LEDA
9-24	DB1-DB17	37	IMO

Structure Details

LCD + IC + FPC + Backlight integrated module design

Packaging & Shipping

Payment Terms

T/T, Western Union, Paypal - Please contact us before payment

Delivery Time

Items shipped within 3 working days after payment
DHL/UPS/FedEx/TNT: 2-5 working days
EMS: 7-10 working days
CPAM/HKPAM: 10-30 working days

Packaging

Anti-static bag or Bubble bag (for samples)
Plastic pallet
Carton box

Our Advantages

Detailed Datasheets: Complete technical documentation including screen/module/driver IC specifications and application circuits
Source Code Support: Comprehensive source code or initialization code provided
Technical Support: Experienced engineering team offering comprehensive technical services
Customization Services: Custom FPC, PCB, and module design available
Solution Development: Special function solutions tailored to your requirements

Quality & Service Commitment

Technical Support: Available throughout your development process

Quality Assurance: All products undergo aging tests with 100% visual and electrical inspection

Product Compatibility: Advanced notification of upgrades with perfect backward compatibility

Warranty: 12-month product warranty period

Frequently Asked Questions

Production Capacity

30,000m² production facility with over 800 personnel across LCD/LCM divisions

Quality Control

ISO9001, RoHS, CE certified with comprehensive quality control from start to finish

Minimum Order Quantity

No strict limits for standard models; Custom models MOQ depends on LCD size

Lead Times

Standard models: stock or 1-2 weeks; Custom models: 5-6 weeks

Samples

Free samples available with free shipping in China; Custom LCD typically 5-8 free samples

Customization

Full OEM services available including TN, HTN, STN, FSTN VA/BTN LCD displays and touch panels

Product Range

LCD Display, AMOLED Display, OLED Display, TFT LCD, Backlight, Custom LCD, COG LCD, COB LCD Module, TFT LCD Module, Graphic LCD display, Segment LCD, 128x64 LCD

Technical Support

Complete technical drawings, driver IC data, initialization codes, and engineering support

Factory Locations

Shenzhen and JiangXi Province factories - Welcome to visit with pickup service from Shenzhen Bao'an Airport or High-way Shenzhen North station

Contact Information

Contact: Erica

Experience: 20 years in micro LCD panel manufacturing

Services Offered:

Small order acceptance
High quality with competitive pricing
Guaranteed mass production lead times
Free technical services
Sufficient spares with each order
